Детали продукта
Место происхождения: Гуандун, Китай
Фирменное наименование: LINK-PP
Сертификация: UL, Reach, RoHs, ISO19001, ISO14001
Номер модели: 1-1840744-3
Условия оплаты & доставки
Количество мин заказа: 50 шт.
Цена: $0.6-$1.9
Упаковывая детали: 50pcs/tray, 1200pcs/carton
Время доставки: 1 день, корабль сегодня
Условия оплаты: TT, дни NET30/60/90
Поставка способности: 4200K-PCS/Month
Тип продукта: |
ICM (Integrated Connector Module) (Интегрированный модуль соединителя) |
Интегрированный магнит: |
Да |
Скорость: |
Гигабитный Ethernet |
AutoMDIX: |
Да, да. |
Тип крепления: |
Через дыру |
Ориентация: |
Угол 90° (справа) |
Застежка: |
Плата вверх |
Прекращение: |
Сплав |
Тип продукта: |
ICM (Integrated Connector Module) (Интегрированный модуль соединителя) |
Интегрированный магнит: |
Да |
Скорость: |
Гигабитный Ethernet |
AutoMDIX: |
Да, да. |
Тип крепления: |
Через дыру |
Ориентация: |
Угол 90° (справа) |
Застежка: |
Плата вверх |
Прекращение: |
Сплав |

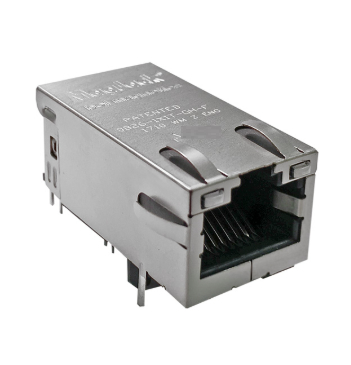

The 1-1840744-3 is a high-performance Integrated Connector Module (ICM) designed for robust Ethernet connectivity. By integrating magnetics directly into the RJ45 interface, this compact module ensures superior signal integrity, EMI/RFI suppression, and space efficiency, making it ideal for next-generation networking and industrial systems.
★ Integrated Magnetics
Combines the RJ45 jack with internal magnetic components including isolation transformers and common mode chokes. This integration enhances signal performance, minimizes noise, and ensures stable data transmission in high-speed Ethernet environments.
★ EMI/RFI Shielding
Provides advanced shielding to suppress electromagnetic and radio-frequency interference, critical for meeting strict EMC (Electromagnetic Compatibility) standards.
★ Space-Saving Design
The all-in-one form factor helps conserve valuable PCB real estate, supporting the ongoing trend toward compact and high-density electronic devices.
★ High-Speed Ethernet Support
Compatible with 10/100BASE-T, 1000BASE-T (Gigabit Ethernet). Ethernet standards.
★ Wide Operating Temperature
With an extended temperature range of -40°C to +85°C, this module is suitable for both commercial and industrial-grade environments.
★ RoHS Compliant
Environmentally conscious design that meets RoHS directives, ensuring the product is free of hazardous substances.
| Parameter | Specification |
|---|---|
| Product Series | RJ45 MagJack |
| Part Number | 1-1840744-3 |
| Port Configuration | 1x1 (Single Port) |
| Mounting Type | Through-Hole (THT) |
| Orientation | 90° Right Angle |
| Termination | Solder |
| Shielding | Full EMI/RFI Shielded Housing |
| LED Indicators | Yes (GO/Y) |
| PoE Support | Non-PoE |
| Operating Temperature | -40°C to +85°C |
| RoHS Compliance | Yes |
| PHY Compatibility | Compatible with all major PHY interfaces |
| Footprint/Pinout | Industry Standard |
