Детали продукта
Место происхождения: Китай
Фирменное наименование: LINK-PP
Сертификация: ISO 9001,ISO 14001,UL,SGS,REACH168
Номер модели: 1-1840727-6
Условия оплаты & доставки
Количество мин заказа: 50/500/1000/25K
Цена: $0.09-$1.85
Упаковывая детали: 50 шт. на лоток, 20 шт. на коробку, 32*30*31 см, 8 кг (1000 шт.) на коробку
Время доставки: в Сток-Шип сегодня
Условия оплаты: TT, дни NET30/60/90
Поставка способности: 4200K-PCS/Month
Номер детали: |
1-1840727-6 |
Конфигурация СИД: |
Зеленый/желтый |
СТРЕД: |
1000Base-T |
Рабочая температура: |
0 ~ + 70oC |
плата: |
Вверх. |
ПЛАТЫ EMI: |
Да |
Номер детали: |
1-1840727-6 |
Конфигурация СИД: |
Зеленый/желтый |
СТРЕД: |
1000Base-T |
Рабочая температура: |
0 ~ + 70oC |
плата: |
Вверх. |
ПЛАТЫ EMI: |
Да |
| Specification | Details |
|---|---|
| Connector Type | RJ45 with Integrated Magnetics |
| Number of Ports | Single (1X1 Configuration) |
| Application | 1000BASE-T Gigabit Ethernet |
| Circuit Type | Gigabit Current |
| LED Configuration | Green/Yellow |
| Tab Direction | Up |
| Housing Material | Thermoplastic, Black, UL 94V-0 Rated |
| Shield Material | Copper Alloy with Nickel Plating |
| Contact Material | Phosphor Bronze with Gold Plating |
| LED Current | Constant Current at Approx. 20mA |
| Operating Temperature | 0°C ~ 70°C |
| Mounting Type | Through Hole |
| Compliance | IEEE 802.3, RoHS |
| LED Position | Color | Typical Indication |
|---|---|---|
| Left LED | Green | Link Status |
| Right LED | Yellow | Activity/Speed |
| Dimension | Measurement |
|---|---|
| Length | 33.02 mm |
| Width | 19.19 mm |
| Height | 15.01 mm |

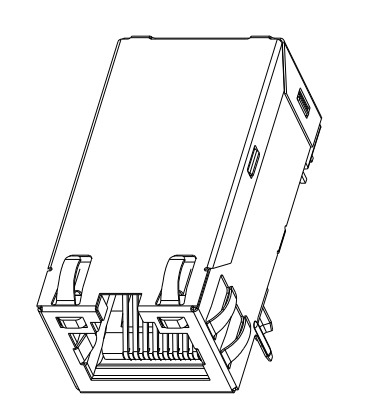

The 1-1840727-6 MagJack features a through-hole mounting design for secure PCB installation. The connector's Tab Up orientation facilitates proper alignment during assembly, ensuring correct positioning and reliable connections. The thermoplastic housing provides excellent durability and heat resistance, making it suitable for various manufacturing processes, including wave soldering.
When designing with the 1-1840727-6 MagJack, engineers can benefit from simplified PCB layouts due to the integrated magnetic components. This integration eliminates the need for separate transformers and common-mode chokes, reducing component count and potential failure points. The Gigabit circuit ensures optimal signal integrity for high-speed data transmission in 1000BASE-T applications.
