Детали продукта
Место происхождения: Гуандун, Китай
Фирменное наименование: LINK-PP
Сертификация: ISO 9001,ISO 14001,UL,SGS,REACH168
Номер модели: 2007178-1
Условия оплаты & доставки
Количество мин заказа: 10/100/25K
Цена: $0.11-$35
Упаковывая детали: 20/Tray
Время доставки: Запас
Условия оплаты: TT, дни NET30/60/90
Поставка способности: 350K/Month
Спецификации: |
2007178-1 |
Применения: |
Локальные сети |
Соединитель: |
РДЖ-45 |
Устанавливать: |
Плугабле, СФП |
Окружающая среда: |
Неэтилированный/РоХС уступчивый |
MSL: |
1 (неограниченный) |
Спецификации: |
2007178-1 |
Применения: |
Локальные сети |
Соединитель: |
РДЖ-45 |
Устанавливать: |
Плугабле, СФП |
Окружающая среда: |
Неэтилированный/РоХС уступчивый |
MSL: |
1 (неограниченный) |
| Part Status | Active | |
|---|---|---|

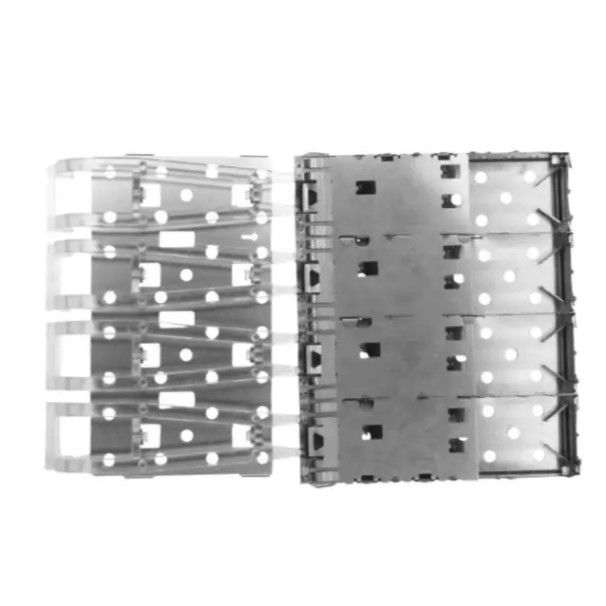

| Connector Style | Cage, Ganged (1 x 4) | |
| Connector Type | SFP+ | |
| Number of Positions | - | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Press-Fit | |
| Features | EMI Shielded, Light Pipe | |
| Contact Finish | - | |
| Contact Finish Thickness | - |
Feature Description: |
● RoHS-6 Compliant (see Table 1)
● Designed for Industry-Standard, MSA Compliant Small Form Factor Pluggable (SFP) Ports
● Compatible with IEEE 802.3:2000
● Custom RJ-45 connector with integrated magnetics
● Link lengths at 1.25 Gbd: up to 100 m per IEEE802.3
● Low power, high performance 1.25 Gbd SerDes integrated in module
● Single +3.3 V power supply operation
● Auto-negotiation per IEEE 802.3:2000 Clause 28 (Twisted Pair) and Clause 37 (1000BASE-X)
● Compatible to both shielded and unshielded twisted pair category 5 cable
● Two configurations:
ABCU-5700RZ: RX_LOS enabled
ABCU-5710RZ: RX_LOS disabled
● Rated for Commercial Temperature applications(0℃～70℃)
Description: |
● The ABCU-5710RZ electrical transceivers from Technologies offer full-duplex throughput of 1000 Mbps by transporting data over shielded and unshielded twisted pair category 5 cable with 5-level PAM (Pulse Amplitude Modulation) signals.
● The ABCU-5710RZ and ABCU-5700RZ differ only in handling of RX_LOS signal functions, as explained further on the following pages.
● The Technologies 1000BASE-T module takes signals from both the twisted pair category 5 cable and the SerDes interface. Pin count overhead between the MAC and the PHY is minimized, and Gigabit Ethernet operation is achieved with maximum space savings.
Related Products: |
● AFBR-5710Z: Family of 850nm +3.3V SFP optical transceivers for Gigabit Ethernet
● AFCT-5710Z: Family of 1310nm +3.3V SFP optical transceivers for Gigabit Ethernet
